Bifacial Brilliance, Half-Cut Efficiency

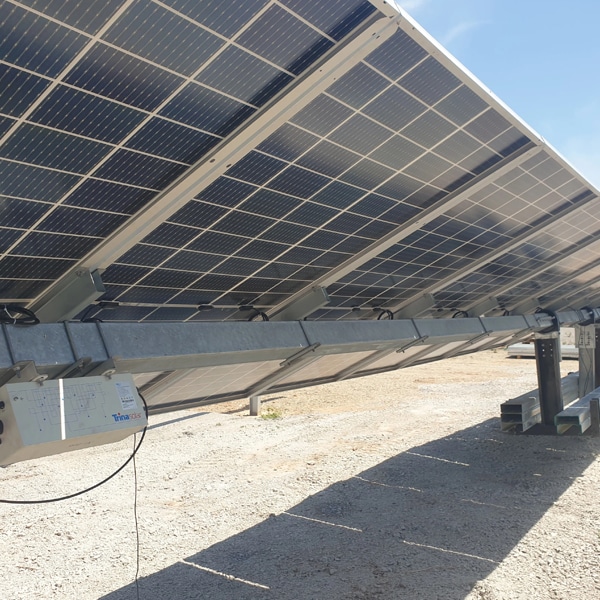

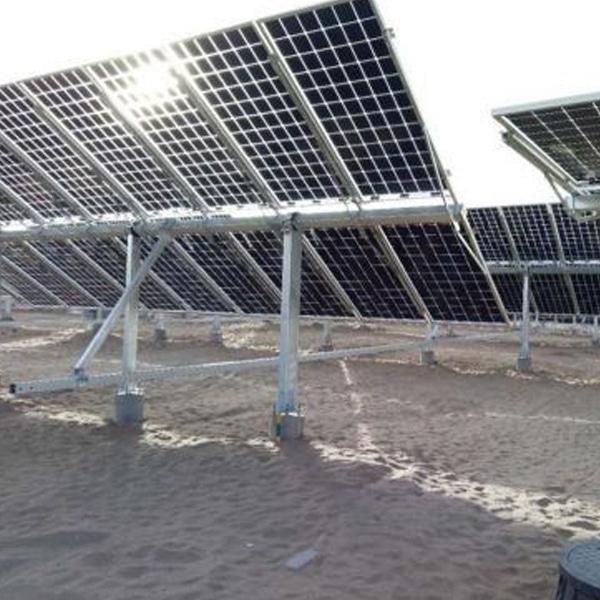

Double-Sided Power Generation
Mono Half-Cut Bifacial Solar Panels represent the next generation of solar technology, designed to capture sunlight from both the front and rear sides. This innovative bifacial design allows for greater energy absorption, leading to higher power output and improved efficiency, even in low-light conditions.

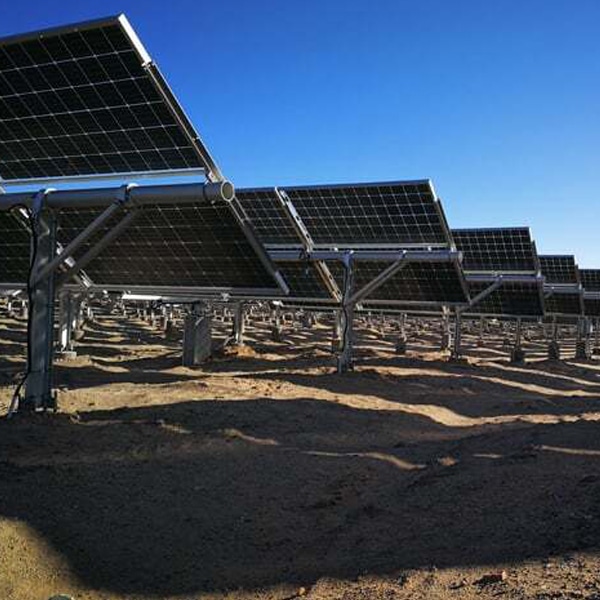

The half-cut cell technology reduces internal resistance, minimizes power loss, and enhances overall durability. These panels perform exceptionally well in commercial, industrial, and utility-scale projects, offering a higher energy yield per square meter. Their superior temperature tolerance and enhanced shading performance make them ideal for diverse environmental conditions.
=
Dual-Sided Power Generation
=
Higher Energy Output
=
Half-Cut Cell Technology
=
Superior Shading Performance
=
Enhanced Temperature Tolerance
Specifications
| No. of Cells | 144 Half-Cut Bifacial Cells |
| Technology | Mono PERC Half-Cut Bifacial |
| Voltage | 24 V |
| Maximum System Voltage | 1000/1500 V DC |
| Module Efficiency | 20.5% - 22.5% |
| Power Output Range | 450W - 600W |
| Bifacial Gain | Up to 30% Additional Power |
| Dimension (LxWxH) | 2094x1038x35 mm |
| Weight | 24.0 Kg |
| Glass Type | Dual 2.0mm Tempered Glass |
| Frame Material | Anodized Aluminium Alloy |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient of Power (Pmax) | -0.34%/°C |
| Temperature Coefficient of Voltage (Voc) | -0.27%/°C |
| Temperature Coefficient of Current (Isc) | +0.05%/°C |
| Junction Box | IP67/IP68 Rated with Bypass Diodes |
| Cable Length | 1200 mm |
| Connector Type | MC4 Compatible |
