Mono Halfcut

Powering Tomorrow with High-Efficiency

Next-Gen Solar Technology

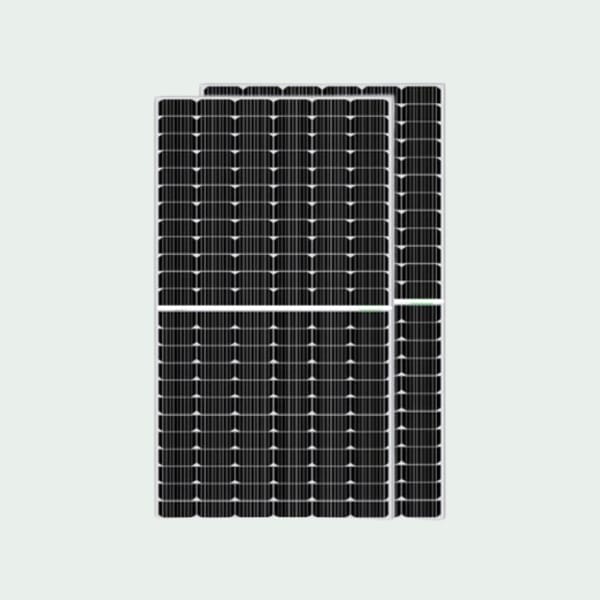

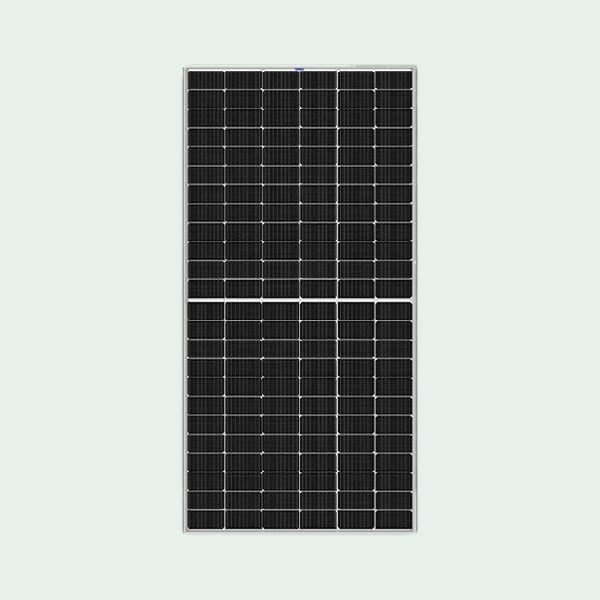

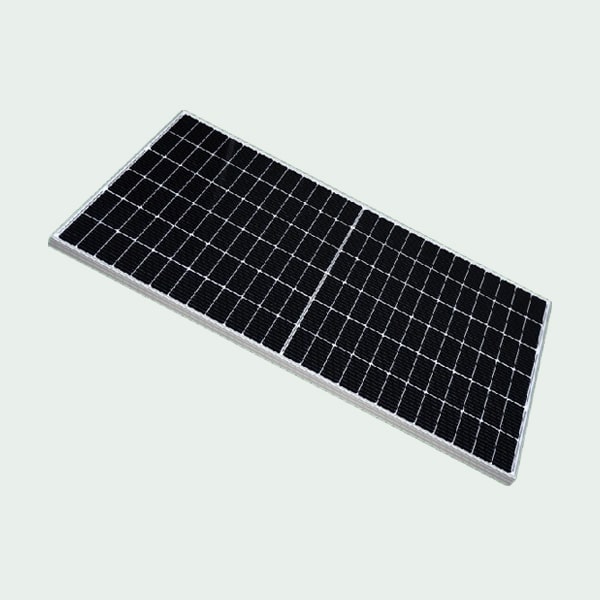

Mono Half-Cut Solar Panels are an advanced solar technology designed to enhance energy generation and efficiency. By splitting traditional solar cells into two halves, these panels reduce electrical resistance, minimize power loss, and improve overall performance, even in shaded conditions.

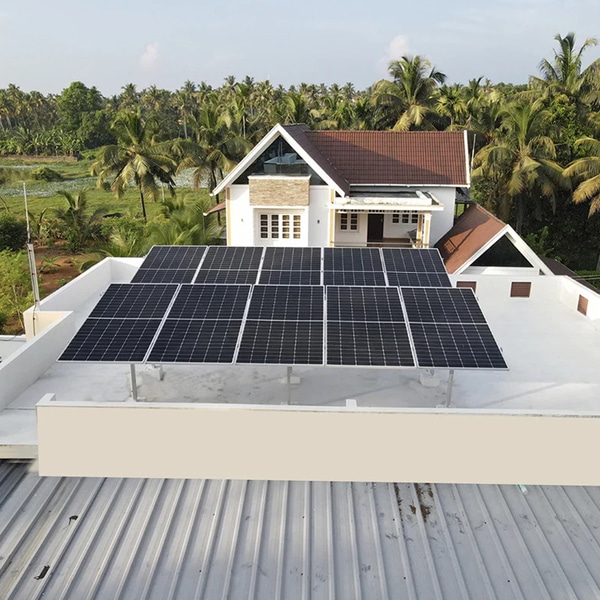

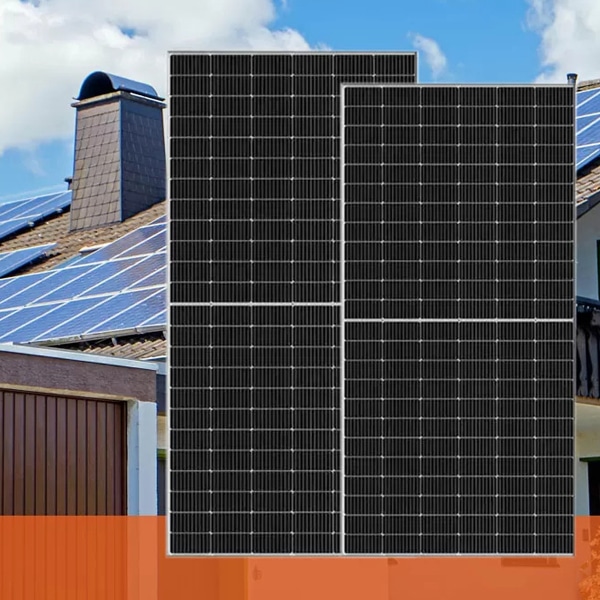

With higher energy output, better temperature tolerance, and enhanced durability, Mono Half-Cut panels are ideal for residential, commercial, and industrial solar installations. Their innovative design ensures improved reliability, making them a preferred choice for those seeking long-term solar solutions.

=
Higher Efficiency
=
Improved Shading Performance
=
Lower Resistance & Heat Loss
=
Higher Power Output
=
Better Temperature Tolerance

Specifications

No. Of Cells 144 Half-Cut Cells
Technology Mono PERC Half-Cut
Voltage 24 V
Maximum System Voltage 1000/1500 V DC
Module Efficiency 20.0% - 22.5%
Power Output Range 430W - 600W
Dimension (LxWxH) 2094x1038x35 mm
Weight 23.5 Kg
Maximum Series Fuse Rating 30A
Operating Temperature -40°C to +85°C
Temperature Coefficient of Power (Pmax) -0.34%/°C
Temperature Coefficient of Voltage (Voc) -0.27%/°C
Temperature Coefficient of Current (Isc) +0.05%/°C
Glass Type 3.2mm Tempered Glass with Anti-Reflective Coating
Frame Material Anodized Aluminium Alloy
Junction Box IP67/IP68 Rated with Bypass Diodes
Cable Length 1200 mm
Connector Type MC4 Compatible
